PA83W Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4 hp Compressor, Three QS2 Diffusers and QuickSink Tubing

Name	Quantity
Tubing	300 ft 3/8" Quick Sink
Horsepower	3/4 HP
Voltage	115v (add 2 behind part # for 230v)
Amps	4.5/2.3 amps (at 10' operating depth)
Maximum Air Flow	6.5 cfm
Maximum Depth	50'
Weight	128
In Aeration Acres	Up to 3 acres
UPC	812506016528

Downloadable Content

PA Aeration System Instructions Stratus™ SRC Compressor Instruction Manual

SKU: SKU: PA83W

PA83W Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4 hp Compressor, Three QS2 Diffusers and QuickSink Tubing

Name: PA83W Aeration System for Ponds up to 3 Acres – Complete System Contains Stratus™ SRC 3/4 hp Compressor, Three QS2 Diffusers and QuickSink Tubing
Brand: Easy Pro
SKU: PA83W
Price: 2311.36 USD
Availability: InStock

$2,311.36

Sale Sold out

Shipping calculated at checkout.

Complete aeration system for ponds up to three acres depending on shape and depth of pond. 3/4 hp Rocking Piston SRC75 compressor, 6.5 cfm, 4.5 amps, aerates up to 50′ deep. The PA83W kit also includes three QS2 Quick Sink air diffusers, three valved outlet assembly with pressure relief valve, 300′ of 3/8″ Quick Sink tubing, fittings and clamps.

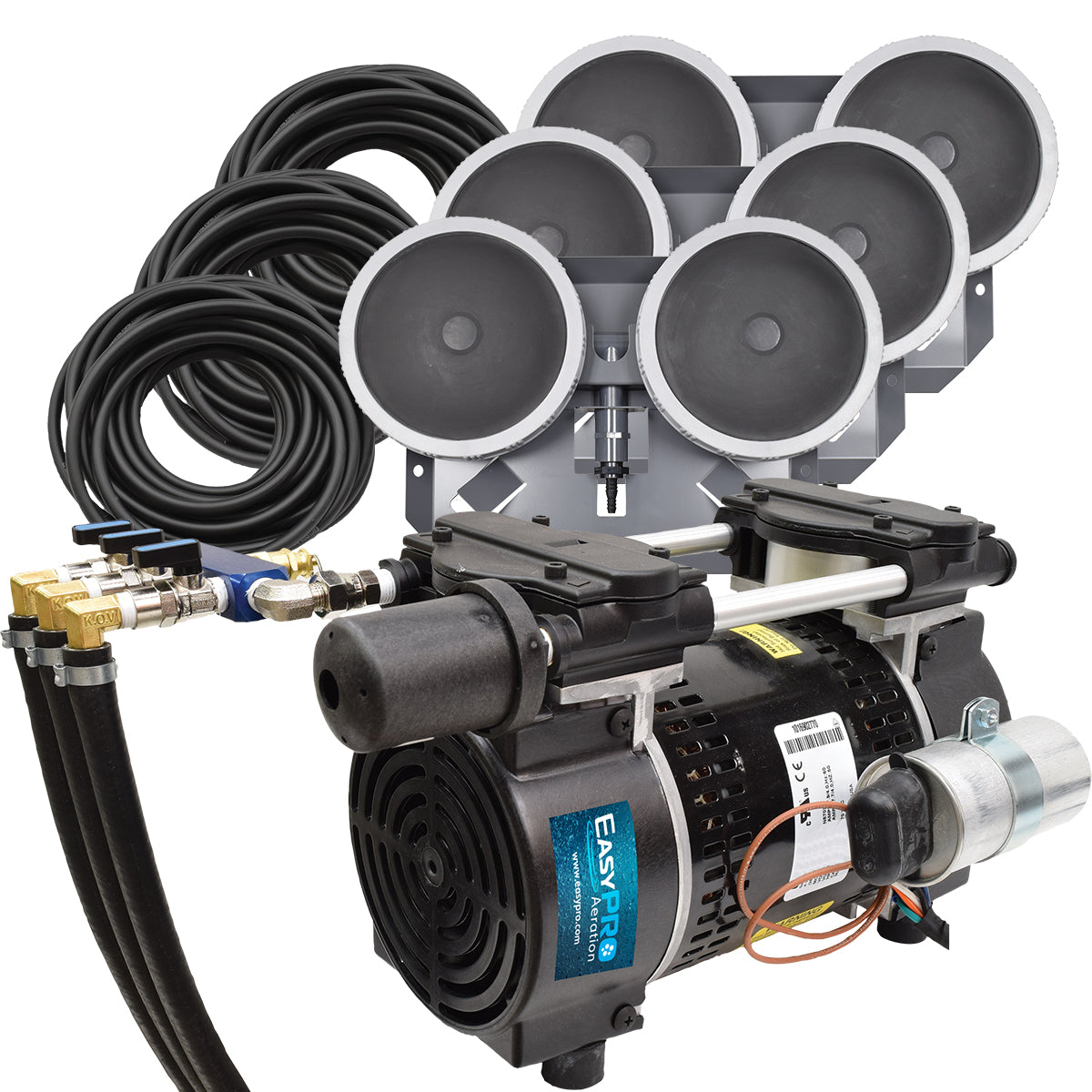

PA83W Aeration System includes:

SRC75 Stratus™ SRC 3/4 hp Air Compressor
Three valve manifold with pressure relief
Valved outlet with heat reducing hose and 3/8″ connections
Three QS2 QuickSink Weighted Diffusers (dual head) – Approx. 2.2 cfm air flow per diffuser
300′ of 3/8″ QuickSink weighted tubing
This system requires weather protection for the compressor

Typical operation cost of $1.10 per 24 hours at .09¢ per kWh, actual cost may vary. 2 Year Warranty on Compressor. 5 Year Warranty on Diffusers and Tubing.
