PA50ADLD Sentinel Deluxe Aeration System – 1/4 HP Kit with NO tubing

Name	Quantity
Tubing	None Included
Horsepower	1/4 HP
Voltage	115v (add 2 behind part # for 230v)
Amps	5.0/2.5 amps
Maximum Air Flow	4.5 cfm
Maximum Depth	18'
Weight	84
In Aeration Acres	Up to 2 acres

Downloadable Content

Aeration Kit Instructions Compressor Manual

SKU: SKU: PA50ADLD

PA50ADLD Sentinel Deluxe Aeration System – 1/4 HP Kit with NO tubing

Name: PA50ADLD Sentinel Deluxe Aeration System – 1/4 HP Kit with NO tubing
Brand: Easy Pro
SKU: PA50ADLD
Price: 2333.71 USD
Availability: InStock

$2,333.71

Sale Sold out

Shipping calculated at checkout.

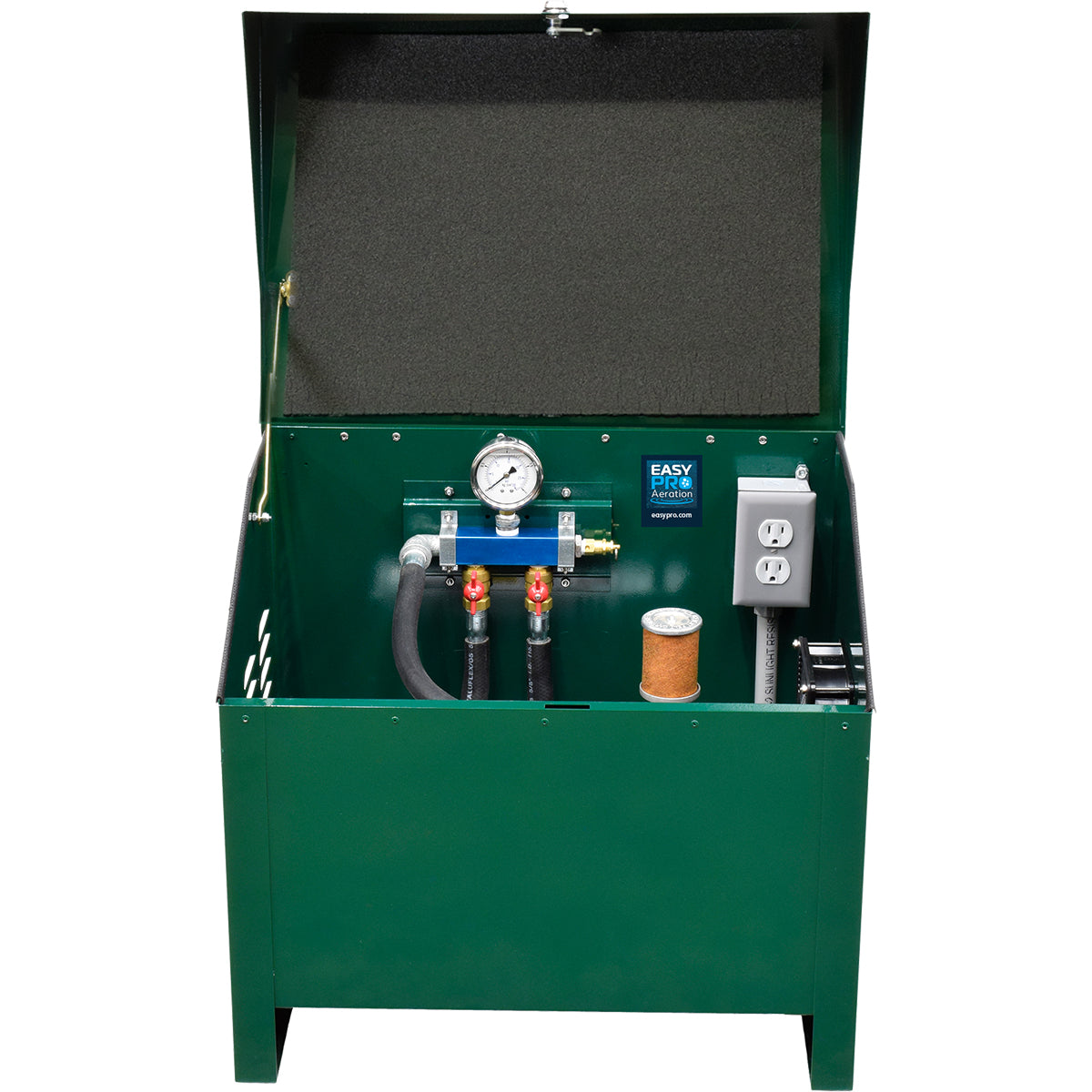

Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18′ deep. PA50ADLD kit includes compressor, two valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit does not include tubing or diffusers making it an ideal solution where custom tubing lengths and choice of diffusers can be purchased as needed. Connections are set up for 1/2″ ID tubing.

Sentinel Deluxe Aeration Systems are designed for convenience and reliability. Each package includes air compressor, valved outlet assembly, pressure gauge and pressure relief valve already installed in our deluxe locking cabinet complete with a cooling fan and a electrical box/outlet already mounted. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Simply set cabinet in desired location, install the air diffusers and connect the tubing!

PA50ADLD features:

1/4 hp Stratus RV33 Rotary Vane compressor
Two valve manifold with pressure relief
Valved outlet with heat reducing hose and 1/2″ connections
Kit does not include diffusers or tubing – select tubing and diffusers that best fit the application
Approximately 2.2 cfm of air flow per diffuser
Typical operation cost of $1.31 per 24 hours at .09¢ per kWh, actual cost may vary

Aeration Kit for Ponds up to 2 acres
1 Year Warranty on Compressor
5 Year Warranty on Cabinet
