PA50AD Sentinel Deluxe Aeration System – Complete PA50A system with cabinet

Name	Quantity
Tubing	None Included
Horsepower	1/4 HP
Voltage	115v (add 2 behind part # for 230v)
Amps	5.0/2.5 amps
Maximum Air Flow	4.5 cfm
Maximum Depth	18'
Weight	109
In Aeration Acres	Up to 2 acres

Downloadable Content

Aeration Kit Instructions Quick Sink Diffuser Instructions

SKU: SKU: PA50AD

PA50AD Sentinel Deluxe Aeration System – Complete PA50A system with cabinet

Name: PA50AD Sentinel Deluxe Aeration System – Complete PA50A system with cabinet
Brand: Easy Pro
SKU: PA50AD
Price: 2766.46 USD
Availability: InStock

$2,766.46

Sale Sold out

Shipping calculated at checkout.

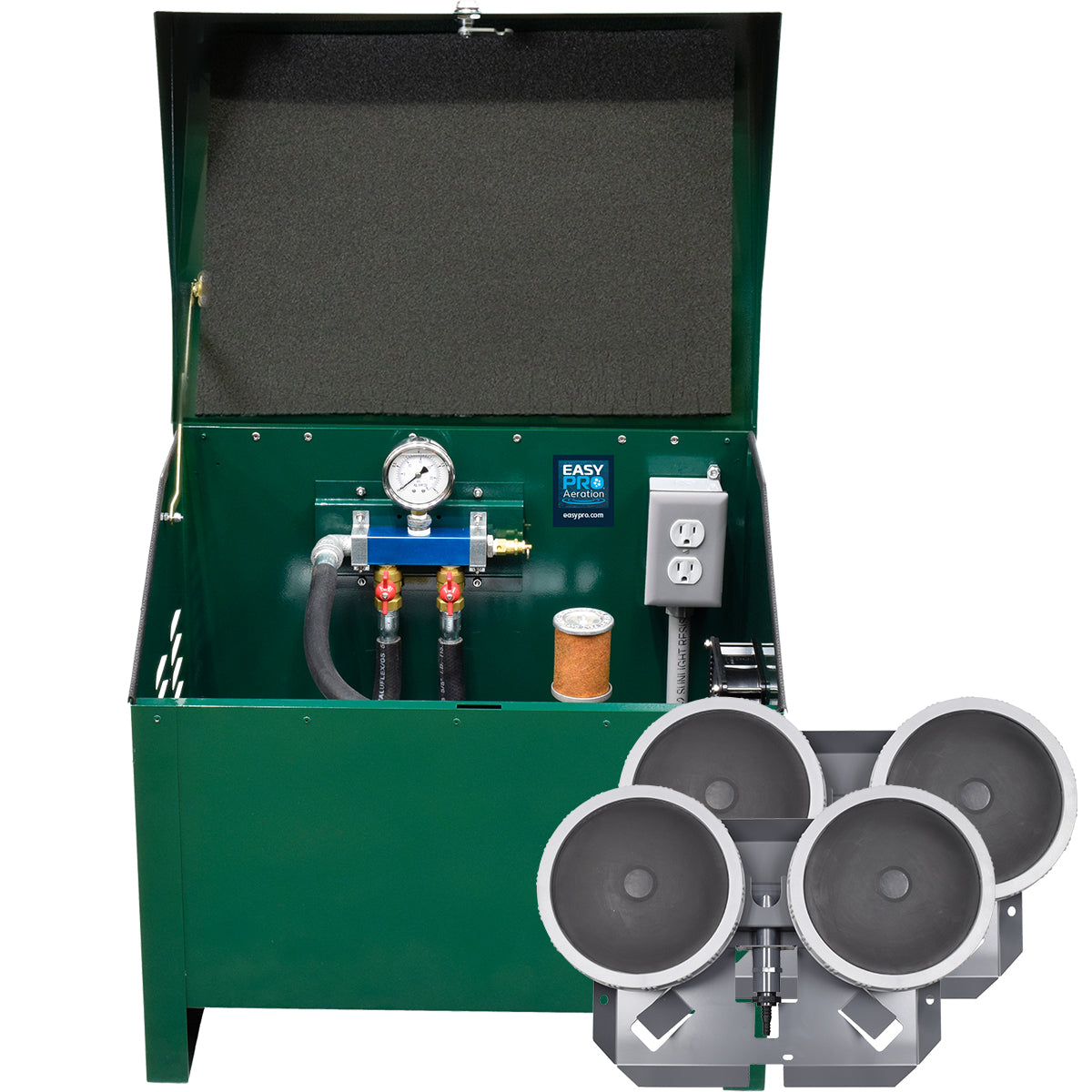

Sentinel Deluxe Aeration System for ponds up to two acres depending on shape and depth of pond. 1/4 hp Rotary Vane RV33 compressor, 4.5 cfm, 2.3 amps, aerates up to 18′ deep. PA50AD kit includes compressor, two valve outlet assembly, pressure gauge and pressure relief valve all mounted in SC22 lockable steel cabinet with cooling fan and electrical outlet installed. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Kit also includes two QS2 Quick Sink air diffusers and fittings for connections. Kit does not include tubing, making it an ideal solution where custom tubing lengths can be purchased as needed. Connections are set up for 1/2″ ID tubing.

Sentinel Deluxe Aeration Systems are designed for convenience and reliability. Each package includes air compressor, valved outlet assembly, pressure gauge and pressure relief valve already installed in our deluxe locking cabinet complete with a cooling fan and an electrical box/outlet already mounted. Now also with 6′ power cord pre-wired to plug cabinet system into GFCI protected outlet. Simply set cabinet in desired location, install the air diffusers and connect the tubing! PA50AD features:

1/4 hp Stratus RV33 Rotary Vane compressor
Two valve manifold with pressure relief
Valved outlet with heat reducing hose and 1/2″ connections
Two QS2 Quick Sink self weighted dual head air diffusers
Kit does not include tubing, order 1/2″ tubing (weighted or unweighted) as needed
Approximately 2.2 cfm of air flow per diffuser
Typical operation cost of $1.31 per 24 hours at .09¢ per kWh, actual cost may vary

Aeration Kit for Ponds up to 2 acres 1 Year Warranty on Compressor 5 Year Warranty on Diffusers and Cabinet
