Name	Quantity

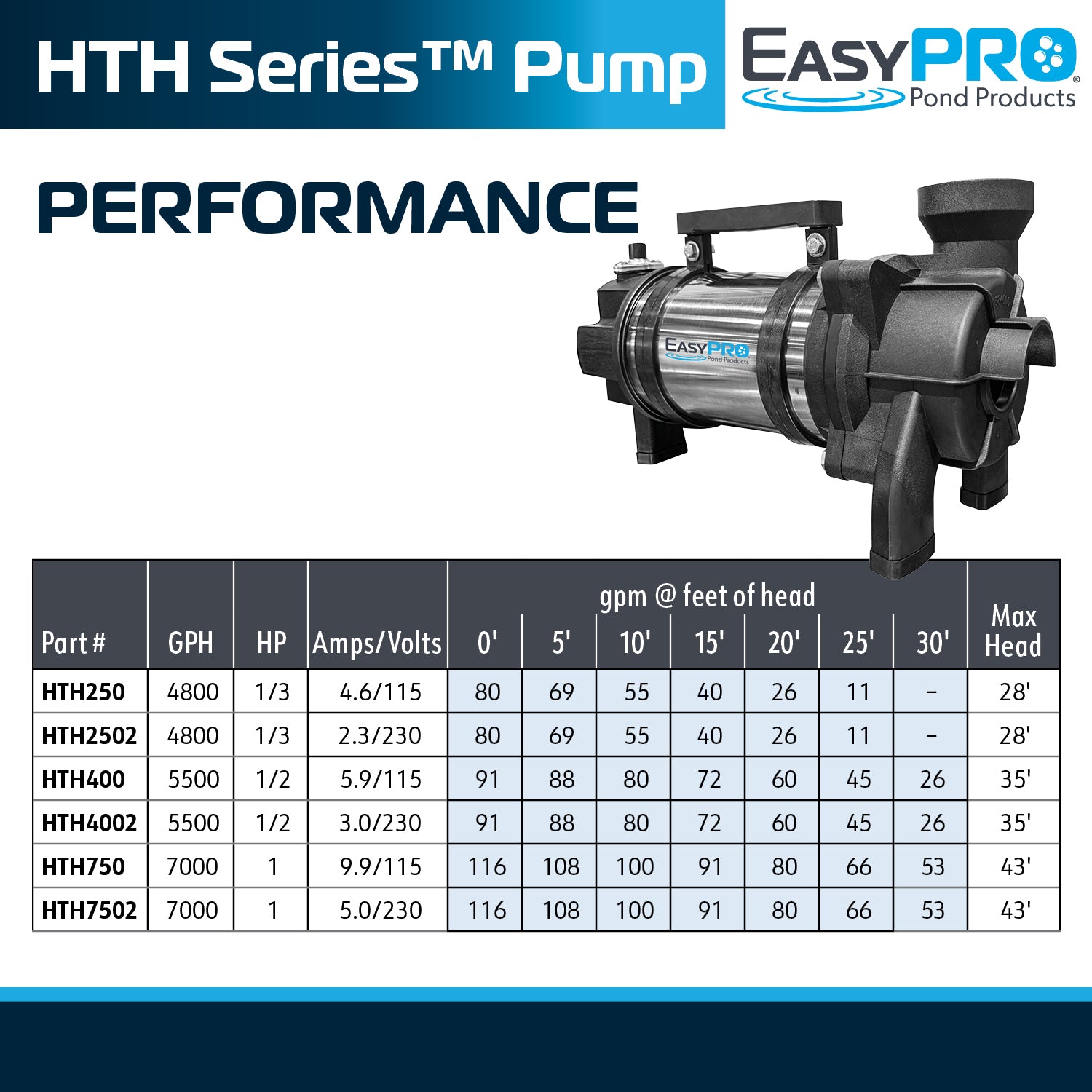

Max Flow Rate	HTH250 & HTH2502: 5400 GPH, HTH400 & HTH4002: 5100 GPH, HTH750 & HTH7502: 6900 GPH
Power Cord Length	20'
Horsepower	HTH250 & HTH2502: 1/3 HP, HTH400 & HTH4002: 1/2 HP, HTH750 & HTH7502: 1 HP
Voltage	HTH250, HTH400, HTH450: 115 Volts. HTH2502, HTH4002, HTH7502: 230 Volts
Amps	HTH250: 4.6 Amps@115 Volts, HTH2502: 2.3 Amps@230 Volts, HTH400: 5.9 Amps@115 Volts, HTH4002: 3.0 Amps@230 Volts, HTH750: 9.9 Amps@115 Volts, HTH7502: 5.0 Amps@230 Volts,

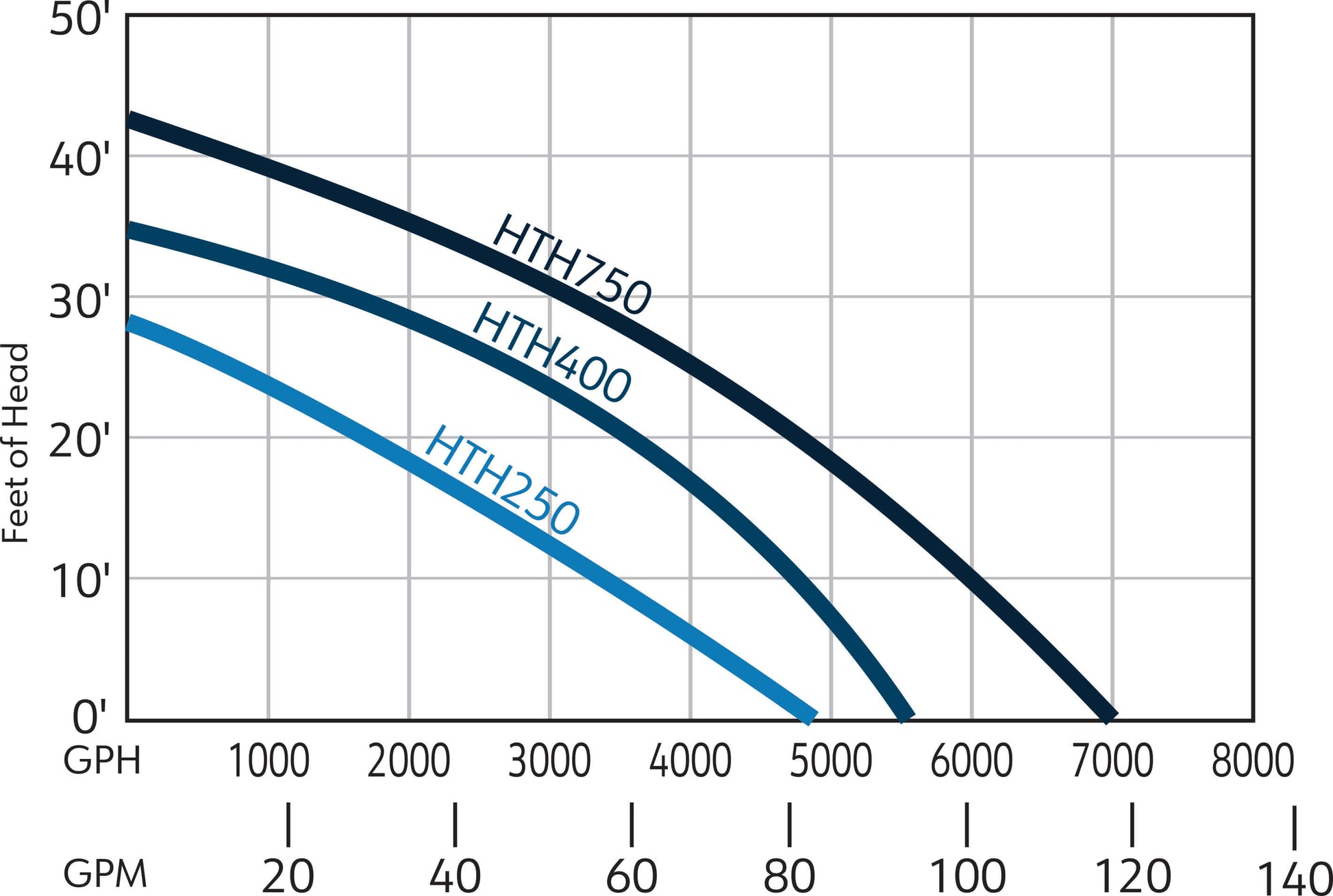

Max Head	HTH250 & HTH2502: 28', HTH400 & HTH4002: 35', HTH750 & HTH7502: 43'
Outlet	2" Female Threaded
Weight	HTH250 & HTH2502: 17 lbs., HTH400 & HTH4002: 20 lbs., HTH750 & HTH7502: 24 lbs.
Warranty	Two Year

Downloadable Content

SKU: SKU: HTH250

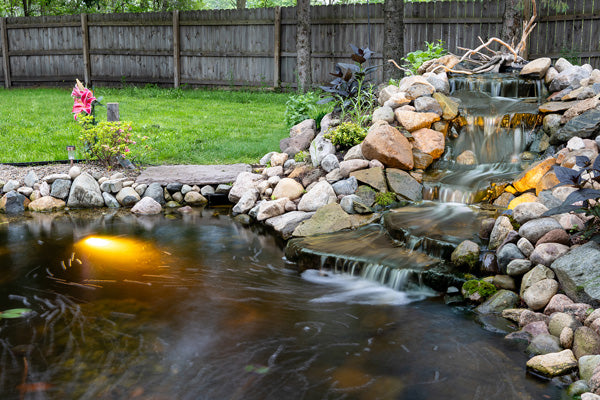

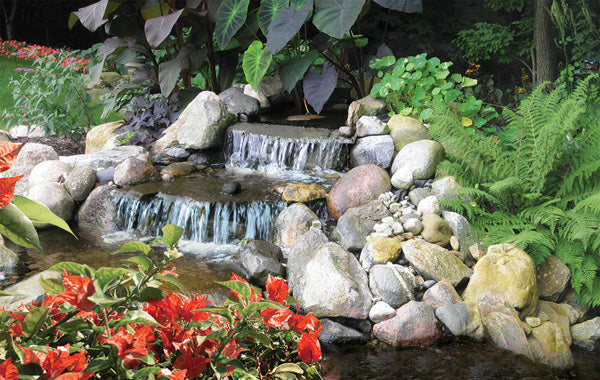

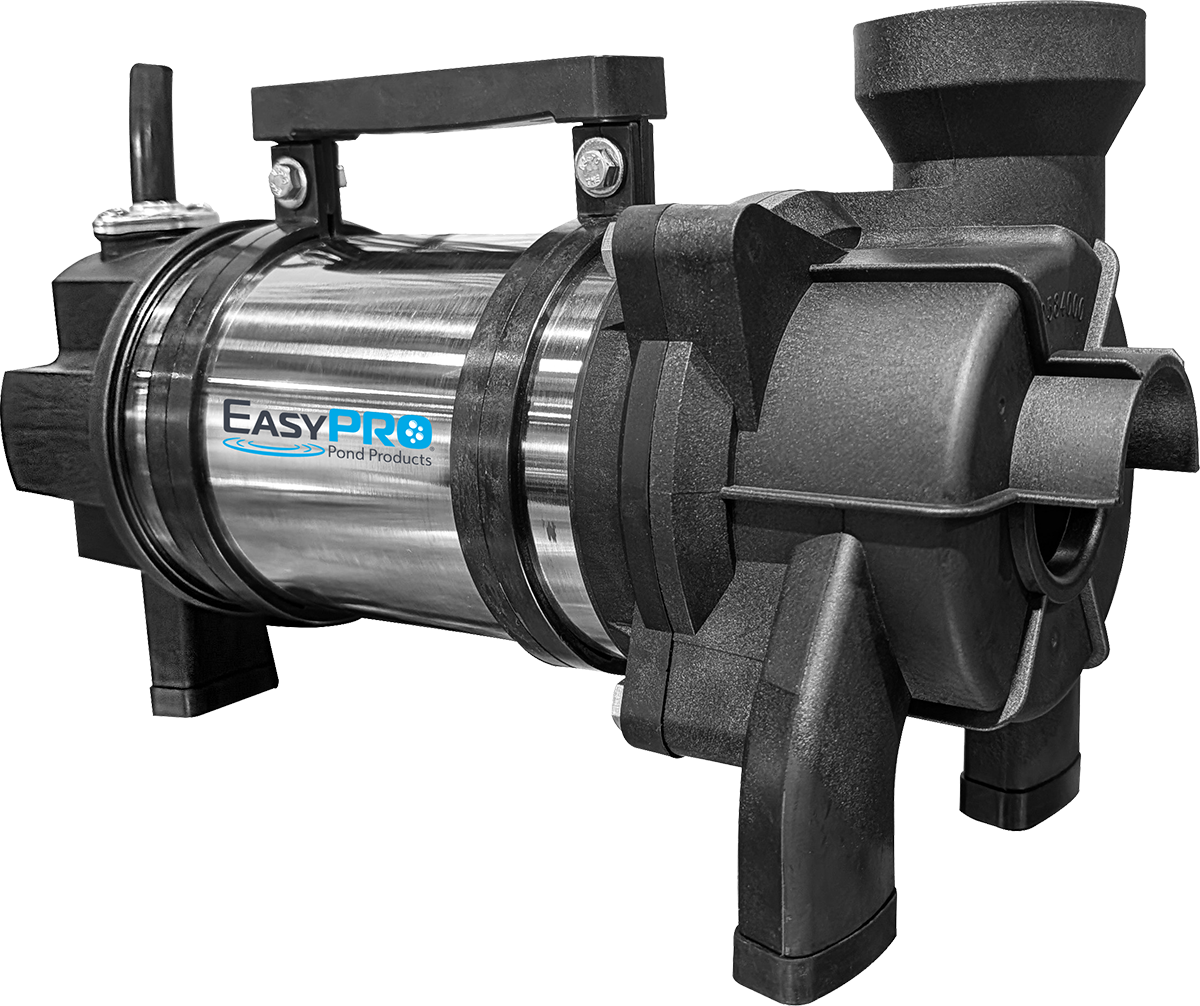

Stainless Steel HTH Series™ Horizontal Submersible Pump For Waterfalls and Streams

$727.73

Sale Sold out

Shipping calculated at checkout.

Size: 4800 GPH 4800 GPH 5500 GPH 7000 GPH

Voltage: 115 Volt 115 Volt 230 Volt

Cord Length: 20' 20' 50' 100'

Our rugged TH Series™ pumps, now in a horizontal model. Reliability, power, and a solids handling design that fits smaller skimmers and pump vaults.

Rugged motor — designed for long life, continuous duty operation; motor housing is corrosion-resistant stainless steel
Double silicone carbide mechanical shaft seals
Low maintenance — pump casing is made from abrasion-resistant, fiber reinforced plastic for maximum life
Wear resistant nylon semi-vortex impeller helps prevents clogging
Built-in overload and overheat motor protection
2" female threaded outlet
20' power cords
Two year limited warranty (wearable parts exempt)
