Common Aeration Compressor Problems and How to Troubleshoot Them

A pond or lake aeration system should produce a steady stream of bubbles at the diffuser.

When those bubbles stop, it usually means air is not moving through the system correctly.

The compressor may still be running.
The cabinet may sound normal.
The motor may still hum.
But if no bubbles are reaching the pond or lake, the system needs troubleshooting.

In most cases, an aeration compressor that is running but not producing bubbles has one of these problems:

• A clogged airline

• A blocked diffuser

• A kinked or frozen line

• An air leak

• Worn compressor components

• A failed capacitor

• Worn bearings

• A diaphragm, vane, or rebuild kit that needs replacement

The good news is that many aeration issues can be diagnosed before replacing the compressor.

Pressure gauges, outlet valves, airflow checks, and simple visual inspections can tell you a lot about what is happening inside your lake and pond aeration system.

This guide explains the most common aeration compressor problems, what they usually mean, and how to troubleshoot them.

Quick Answer: Why Is My Aeration System Not Producing Bubbles?

If your aeration system is running but not producing bubbles, start by checking the pressure gauge and outlet valves.

High pressure usually means air is being blocked somewhere in the system.
Low pressure often points to an air leak or weak compressor output.
A humming compressor that does not start may have a failed capacitor or worn bearings.

Common causes include clogged airlines, blocked diffusers, frozen tubing, kinked lines, air leaks, worn rocking piston components, worn rotary vanes, or worn diaphragms.

Before replacing parts, confirm whether the compressor is building pressure and whether air can move freely to the diffuser.

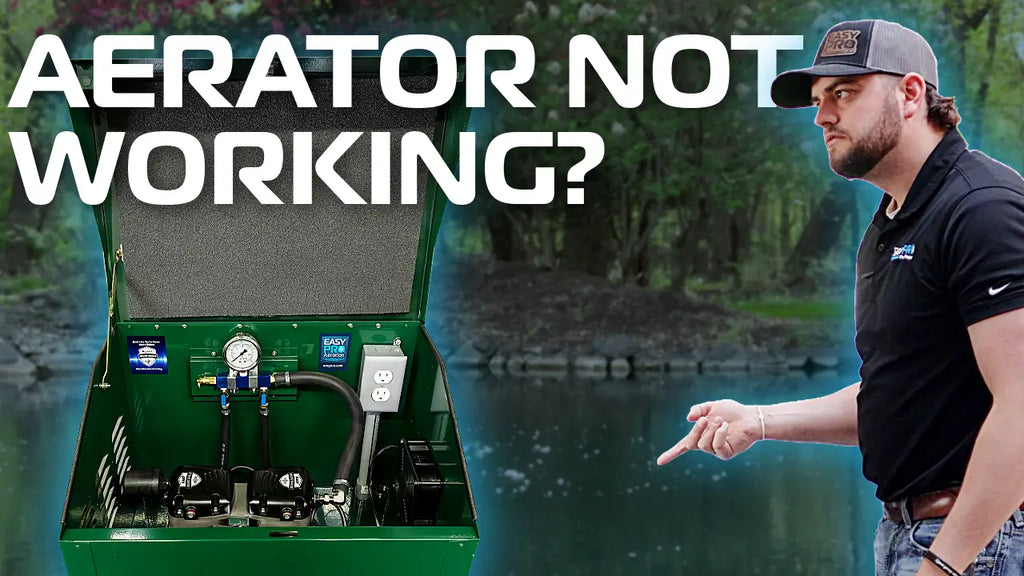

Watch the EasyPro Aeration Compressor Troubleshooting Video

EasyPro’s technical support and warranty team explain these common issues in the video, “Why Is My Aeration System Not Producing Bubbles? | EasyPro Aeration Compressor Troubleshooting Guide.”

In the video, Robert from EasyPro’s warranty team and Sal Adams from technical support walk through common aeration problems using an SRC50SS compressor with Sound Shield™ technology in a PA65ADLD aeration system.

They show how the pressure gauge, valves, compressor fan, capacitor, bearings, intake filter, and airline path can help identify the source of the problem.

Featured equipment includes:

• SRC50SS Stratus™ SRC 1/2hp Compressor with Sound Shield™

• PA65ADLD Sentinel Deluxe Aeration System

• SRC50 Stratus™ Rocking Piston Compressor

• KLC Series Pond Aerators

• CAS Compact Aeration Series Kits

Why Aeration Compressor Troubleshooting Matters

Aeration depends on steady airflow.

The compressor pushes air through the airline and down to the diffuser. The diffuser releases that air into the water as bubbles. This movement helps circulate the pond or lake and supports oxygen transfer through the water column.

When airflow is reduced or blocked, the system cannot perform as intended.

Poor airflow can contribute to:

• Lower oxygen levels

• Fish stress

• Reduced circulation

• More organic buildup

• Odor issues

• Poor diffuser performance

• Extra strain on the compressor

That is why it is important to troubleshoot early.

A small problem, such as a dirty intake filter or a partially clogged diffuser, can become a larger issue if the compressor continues to run under strain.

Start With the Pressure Gauge

The pressure gauge is one of the most helpful troubleshooting tools on an aeration system.

It helps show whether your lake and pond compressor is building pressure and whether air is moving freely through the system.

High Pressure

High pressure usually means air is being blocked.

The compressor is pushing air, but that air cannot reach the diffuser. Pressure builds inside the system, and the pressure relief valve may open.

Common causes of high pressure include:

• Clogged airline

• Blocked diffuser

• Kinked tubing

• Frozen line

• Closed outlet valve

• Sharp bend in the line

• Debris in the airflow path

Low Pressure

Low pressure can mean air is escaping or the compressor is not making enough compression.

Common causes of low pressure include:

• Loose fittings

• Cracked airline

• Air leaks

• Worn compressor components

• Worn diaphragms

• Worn rotary vanes

• Rocking piston components that need service

Normal Pressure but Weak Bubbles

If pressure looks normal but bubbles are weak, check the diffuser and airline.

The issue may be:

• Uneven valve adjustment

• A small air leak

• A damaged fitting

• A restriction in one diffuser line

Pressure readings do not solve the problem by themselves, but they help tell you where to look next.

Problem 1: Compressor Is Running but No Bubbles Are Showing

This is one of the most common aeration system problems.

The compressor sounds like it is running, but the diffuser is not producing bubbles.

Do not assume the compressor has failed.

First, check whether the compressor can build pressure.

Close the outlet valves and watch the pressure gauge. If the compressor builds strong pressure, the compressor is likely still making compression. That means the problem may be downstream in the airline, diffuser, fittings, valves, or manifold.

If the compressor cannot build pressure with the outlet valves closed, internal wearable parts may need service.

What to Check

Check these areas first:

• Outlet valves

• Pressure gauge reading

• Airline connections

• Remote manifold fittings

• Diffusers

• Check valves

• Kinked tubing

• Frozen tubing

• Visible air leaks

If the issue appears to be at the diffuser, review EasyPro’s lake and pond diffusers.

If the issue appears to be in the line, check aeration airline and fittings.

If the compressor is an SRC50, SRC502, SRC50SS, or SRC502SS and cannot build pressure, the correct SRC50K repair kit may be needed. All EasyPro compressors have rebuild kits available if needed.

Problem 2: Pressure Relief Valve Keeps Opening

A pressure relief valve usually opens when pressure builds too high inside the system.

This often means the compressor is running, but air cannot move freely to the diffuser.

The pressure relief valve is not the main problem. It is usually a sign of another problem.

Common Causes

A pressure relief valve may open because of:

• A clogged airline

• A blocked diffuser

• A frozen line

• A kinked tube

• A closed valve

• A sharp bend in the airline

• A blocked remote manifold line

• Excess back pressure

What to Do

Start with the valves.

Make sure outlet valves are open and properly adjusted. Then inspect the airline path. Look for kinks, dips, sharp turns, or damage.

If the line is clear, check the diffuser. A blocked diffuser can create back pressure and cause the relief valve to open.

Do not continue running the system if the pressure relief valve keeps blowing off. Find the restriction before the compressor is damaged.

Problem 3: Air Leak in the Aeration System

An air leak can keep bubbles from reaching the diffuser even when the compressor is working.

Air may escape through a cracked line, loose fitting, damaged tubing, or leaking manifold connection.

Signs of an Air Leak

Common signs include:

• Low pressure

• Weak bubbles

• No bubbles at one diffuser

• Uneven airflow between diffusers

• Hissing near fittings

• Compressor runs but output is reduced

Where to Look

Inspect:

• Hose clamps

• Manifold fittings

• Valve assemblies

• Airline connections

• Damaged tubing

• Cracked airline

• Check valve connections

For visible connections, listen for hissing.

A soap and water solution can also help identify leaks around fittings. If bubbles form at a fitting, air may be escaping.

If the leak is underground or underwater, you may need to isolate sections of the system to find where pressure is being lost.

Problem 4: Blocked or Clogged Diffuser

Diffusers release air at the bottom of the pond or lake.

Although it is not common, time, a diffuser can become restricted by mineral buildup, biological growth, sediment, or muck.

When that happens, bubbles may become weak or stop completely.

Signs of a Blocked Diffuser

A blocked diffuser may cause:

• High pressure

• Weak bubbling

• No bubbles

• Pressure relief valve activation

• Uneven airflow

• Reduced aeration performance

What to Do

Check the pressure gauge first.

If pressure is high and the airline is clear, the diffuser may be restricted.

Inspect the diffuser if it can be safely accessed. Clean or replace it based on the diffuser type and product instructions.

If the diffuser is sitting in heavy muck, repositioning may be needed.

Browse EasyPro lake and pond diffusers if the diffuser needs replacement or the system requires a different diffuser setup.

Problem 5: Compressor Hums but Does Not Start

A humming compressor usually points to an electrical or mechanical issue.

The compressor may be receiving power, but the motor is not starting.

In EasyPro’s troubleshooting video, this is explained as one of two likely problems:

• A failed start capacitor

• Worn bearings

How to Check

Disconnect power before inspecting the compressor.

Remove the fan guard if needed and check whether the fan spins freely.

If the fan spins freely, the capacitor may be the issue.
If the fan does not rotate freely, worn bearings may be preventing operation.

Do not leave a humming compressor powered for long periods. A motor that hums but does not run can create heat and may cause further damage.

Problem 6: Capacitor Failure

A capacitor helps the compressor motor start.

If the capacitor fails, the compressor may hum but fail to run normally.

What Causes a Capacitor to Fail?

Capacitors can fail because of:

• Power surges

• Storm-related electrical events

• Age

• Heat

• Moisture

• Improper electrical protection

Power surges are a common reason capacitors fail. A properly protected GFI or GFCI outlet can help reduce electrical risk.

If you suspect a capacitor issue, confirm the correct replacement part for your compressor model. Electrical components should be serviced carefully. Contact a qualified technician or EasyPro support if you are unsure.

Problem 7: Rocking Piston Compressor Problems

Rocking piston compressors are commonly used in pond and lake aeration systems because they are efficient, build pressure required for deeper water applications and tend to be a good solution for most lakes and ponds, whether they are shallow or deep.

EasyPro SRC Series compressors, including the SRC50 Stratus™ Rocking Piston Compressor, are used in systems where a shore-mounted compressor sends air through tubing to bottom-mounted diffusers.

Common Rocking Piston Issues

Common rocking piston compressor problems include:

• Reduced airflow

• No bubbles

• Low pressure

• Compressor runs hot

• Compressor hums but does not start

• Dirty intake filter

• Worn piston cups or seals

• Need for a rebuild kit

How to Tell if a Rebuild Kit Is Needed

Close the outlet valves and check the pressure gauge.

If the compressor builds pressure, it may not need a rebuild. The issue may be downstream.

If the compressor cannot build pressure, internal wearable parts may need replacement.

For model-specific service items, review EasyPro rocking piston compressor parts and accessories or compressor repair kits and accessories.

Problem 8: Rotary Vane Compressor Troubleshooting

Rotary vane compressors are often used for shallower pond applications where higher air volume is needed at moderate pressure.

Many basic troubleshooting steps are the same as with rocking piston compressors.

What to Check

For rotary vane compressor troubleshooting, inspect:

• Pressure gauge

• Outlet valves

• Airline

• Diffusers

• Intake filter

• Air leaks

• Compressor noise

• Airflow at the outlet

Rotary vane compressors also use wearable vanes. If airflow drops and the airline, diffuser, and valves check out, the vanes may need inspection or replacement.

Use EasyPro rotary vane compressor parts and accessories for model-specific service items.

Problem 9: Diaphragm Compressor Troubleshooting

Diaphragm compressors are often used for shallow aeration kits, koi ponds, aquariums, small fish tanks, and compact pond aeration systems.

EasyPro KLC Series and CAS Series compressors are diaphragm-style compressors.

These compressors are quiet and useful for smaller applications, but the diaphragms are wearable parts.

Common Diaphragm Compressor Issues

Common issues include:

• Reduced airflow

• No bubbles

• Weak output

• Worn diaphragm

• Kinked tubing

• Backward check valve

• Blocked air stone or diffuser

What to Do

If a diaphragm compressor is running but not pushing enough air, check the tubing first.

Look for:

• Kinks

• Loose fittings

• Blocked diffuser or air stone

• Check valve installed in the wrong direction

If those parts are correct, the diaphragm kit may need replacement.

For KLC-style systems, review KLC Series Pond Aerators and KLC replacement diaphragm kits.

For compact applications, review EasyPro CAS Compact Aeration Series Kits.

Problem 10: Remote Manifold and Winter Aeration Issues

Remote manifolds are often used when power is located away from the pond or lake.

In some systems, the compressor may sit 50 feet, to hundreds or even several thousand feet from the water. The manifold is then installed closer to the pond, with an airline running between the compressor and manifold.

This setup can work well, but the airline path matters.

Common Remote Manifold Problems

Remote manifold systems may have issues when the airline has:

• Sharp turns

• Deep dips

• Sudden drops

• Low spots

• Freeze-prone sections

• Poorly protected tubing

If moisture collects in a low spot and freezes, airflow can stop. The compressor may still run, but bubbles may disappear and pressure may rise.

What to Do

Inspect the airline route.

Avoid sharp bends and low spots where water can collect. Use a properly sized aeration airline, and make sure the line is protected from damage.

If the system loses bubbles during cold weather, check for frozen line restrictions.

Problem 11: Dirty Intake Filter

A compressor needs clean intake air.

A dirty intake filter can reduce airflow and make the compressor work harder.

Signs of a Dirty Filter

A dirty filter may cause:

• Reduced airflow

• Weak bubbles

• Hotter compressor operation

• Increased strain

• Shorter component life

Maintenance Tip

Inspect intake filters regularly and replace or clean them as needed.

In many applications, filters should be checked every few months. Dusty, dirty, or high-use environments may require more frequent service.

Can I Install an Aeration Compressor in a Shed?

Yes, an aeration compressor can be installed in a shed instead of a cabinet.

The cabinet is not always required, but the compressor must be protected from the elements.

A shed installation should provide:

• Weather protection

• Good ventilation

• Cooling airflow

• Dry conditions

• Access for maintenance

• Protection from dust and debris

A sealed shed that traps heat is not a good location. Compressors create heat during operation. Without proper ventilation, heat can build up and shorten compressor life.

If you need a complete protected setup, review EasyPro Sound Shield™ equipped aeration systems.

Aeration Compressor Maintenance Checklist

Routine pond aeration maintenance helps prevent many common compressor problems.

Use this checklist as a starting point.

Regular Checks

• Confirm bubbles are visible at the diffuser

• Check the pressure gauge

• Listen for unusual compressor noise

• Inspect the cooling fan

• Check cabinet or shed ventilation

• Look for moisture, dust, or debris

• Inspect visible airline and fittings

Every 3–6 Months

• Inspect or replace intake filters

• Check airflow through the cabinet or shed

• Inspect valves and manifolds

• Look for insects or debris

• Check for loose fittings

• Check for air leaks

As Needed

• Replace diaphragm kits

• Replace rotary vanes

• Rebuild rocking piston compressors

• Replace worn capacitors

• Repair damaged airline

• Clean or replace clogged diffusers

• Replace damaged fittings or check valves

Maintenance timing depends on compressor type, site conditions, runtime, heat, dust, and system load.

Troubleshooting by Symptom

When to Contact EasyPro or a Dealer

Some aeration problems can be fixed with basic inspection.

Others require the correct service parts or technical support.

Contact EasyPro technical support, a qualified dealer, or a service technician if:

• The compressor hums but will not start

• The compressor cannot build pressure

• The pressure relief valve keeps opening

• The system trips a GFI or GFCI outlet

• Bearings may be worn

• Electrical parts may need replacement

• You are unsure which rebuild kit is needed

• The diffuser cannot be safely accessed

• The system may have an underground or underwater leak

Before calling, note the compressor model number, pressure gauge reading, diffuser count, airline length, and what symptoms you are seeing.

That information can help identify the right next step.

Choosing the Right Replacement Parts

Before replacing parts, identify the compressor style and model number.

Different compressor types require different parts.

Common replacement items include:

• Rocking piston rebuild kits

• Rotary vane replacement vanes

• Diaphragm kits

• Intake filters

• Capacitors

• Diffusers

• Airline

• Fittings

• Check valves

• Valve assemblies

Do not assume parts are interchangeable between compressor models.

Start with EasyPro compressor repair kits and accessories, then choose the correct category based on your compressor type:

• Rocking piston compressor parts and accessories

• Rotary vane compressor parts and accessories

• Diaphragm compressor parts and accessories

Final Takeaway

If your aeration compressor is running but not producing bubbles, do not replace the compressor right away.

Start with the airflow path.

Check the pressure gauge.
Check the outlet valves.
Check the airline.
Check the diffuser.
Check for leaks.
Then check the compressor.

Most lake aeration system troubleshooting comes down to one question:

Is the compressor making air, and can that air reach the diffuser?

If pressure is high, look for a blockage.
If pressure is low, look for a leak or weak compressor output.
If the compressor hums but does not run, check the capacitor and bearings.
If a diaphragm compressor runs but has weak airflow, check the tubing, check valve, and diaphragm kit.

Routine maintenance helps extend compressor life and keeps your pond or lake aeration system performing as intended.

Need to repair, maintain, or troubleshoot your system? Explore EasyPro lake and pond aeration systems, lake and pond compressors, diffusers, aeration airline, and compressor repair kits.
