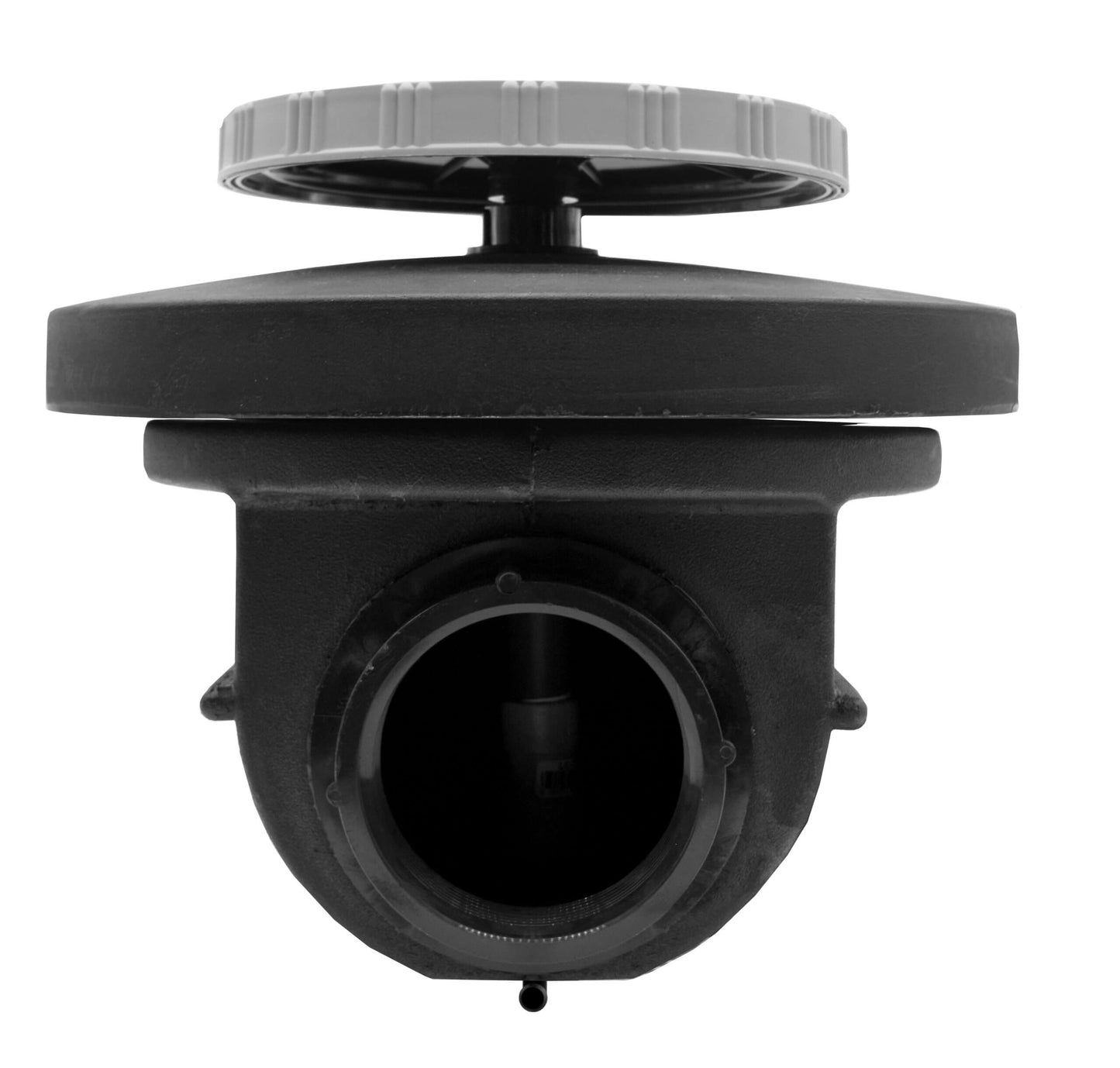

EBD4A 4″ Heavy Duty Bottom Drain with Air Diffuser

SKU: EBD4A

Many pond builders have found that adding a bottom drain helps keep a pond cleaner. Fish waste and other muck that accumulates on a pond bottom can be easily removed by a bottom drain. Ponds that are over 2′ deep can become stagnant without a bottom drain.

Product Description

4″ EBD4A Bottom Drain Features:
  • Heavy duty, roto-molded design offers superior strength
  • Welded FPT threaded inlet eliminates the need for rubber coupling
  • Threaded center stand pipe securely attaches dome lid to base
  • Sixteen stainless screws securely attach liner ring to base with water tight seal
  • For use with 4″ schedule 40 PVC fittings and pipe, use 4″ male adapter (MA40) to connect to 4″ pipe, use reducing male adapter (RMA4030) to connect to 3″ pipe
  • EBD4A incorporates an air diffuser into the dome lid – incoming air is delivered up through the center stand pipe allowing air tubing to be installed under liner
  • EBD4A tubing adapter is 1/2″, recommended air flow through diffuser is .5 – 1.5 cfm

Product Specs

Name Quantity
Case Quantity
Max Flow Rate
Weir
Dimensions
Pond Size
Power Cord Length
Inlet
Waterfall Opening
Liner Size
Skimmer
Filter
Tubing
Lighting
Pond Gallons
Pump Warranty
Pump Vault
Spillway
Rescubes
Recommended Flow Rate
Horsepower
Voltage
Amps
Watts
Reservoir Area
Capacity
Recommended Basin
Statuary
Basin
Transformer
Lights
Cable Lengths
Initial Dose
Maintenance Dose
Bottle Treats
Maximum Head
Outlet
UV Watts
GPH Flow
Max PSI
Required Hole Size
Size
Coverage Area
Overall Height
Roll Length
Recommended Air flow
Maximum Air Flow
Maximum Depth
Minimum Operating Depth
Warranty
Special Price
Cost
Weight
12 lbslbs
In Max Flow Rate
In Max Head
UPC
812506013282

Downloadable Content

4" Bottom Drain with Air Diffuser Instructions
